This article covers how to fit and remove the card reader from the Donation Station Express enclosure.
Skip to:
| ⤵️ 1. Remove the card reader from the enclosure |
| ⤵️ 2. Fit the card reader in the enclosure |
🔶 1. Remove the card reader from the enclosure:
🔸a. Turn the enclosure around so you are looking at the rear and locate the locking screw on the right.
🔸b. Unscrew the lock by turning it anticlockwise. You do not need to unscrew it all the way.

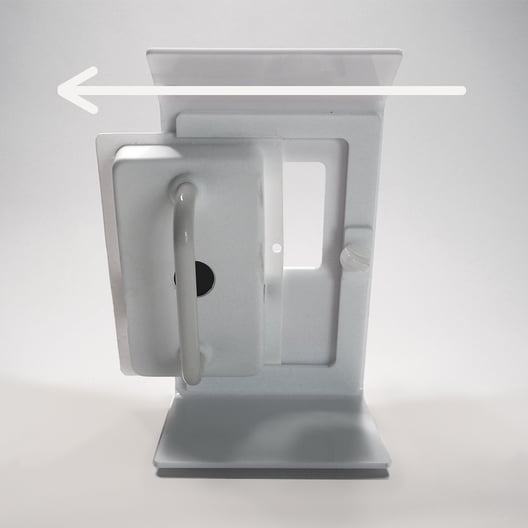

🔸c. Slide the tray out using the handle to access the card reader. If you ever need to remove the card reader from the tray, there is a hole in the rear that allows you to push it out.
🔶 2. Fit the card reader in the enclosure:

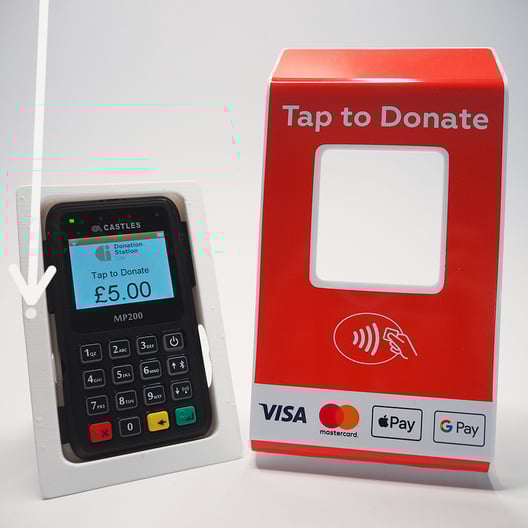

🔸a. Place the card reader back in the tray. When looking at the card reader in the tray, the locking hole should be on the left.

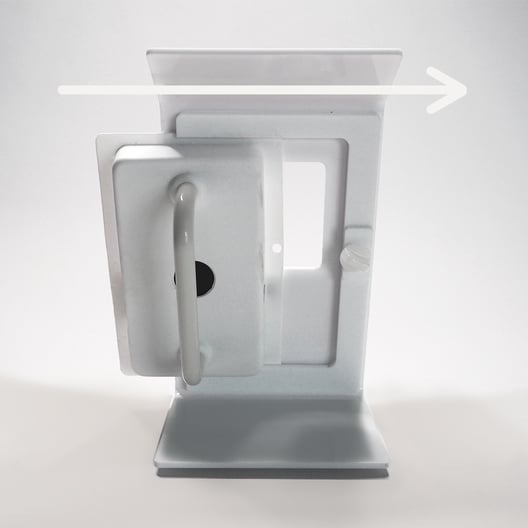

🔸b. Slide the tray back into the enclosure.
🔸c. Turn the locking screw clockwise to secure the tray in position.
🔶 3. Secure and Charge with the Enclosure

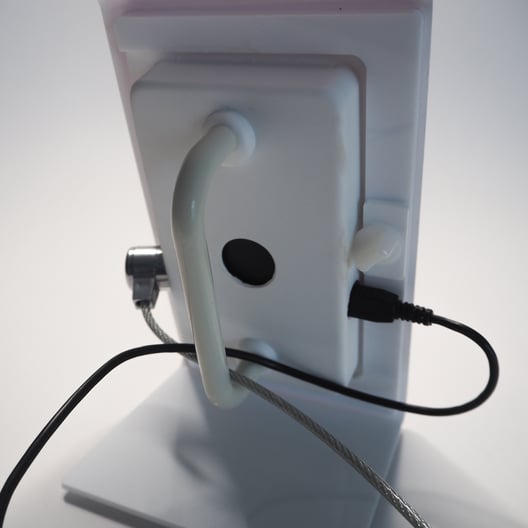

🔸There are holes in either side of the tray that can be used to access the charging port (to connect the power cable) and the security cable.
