A step-by-step guide for wall mounting your Donation Station Slim.
Skip to:
🔶 1. Unbox your Slim

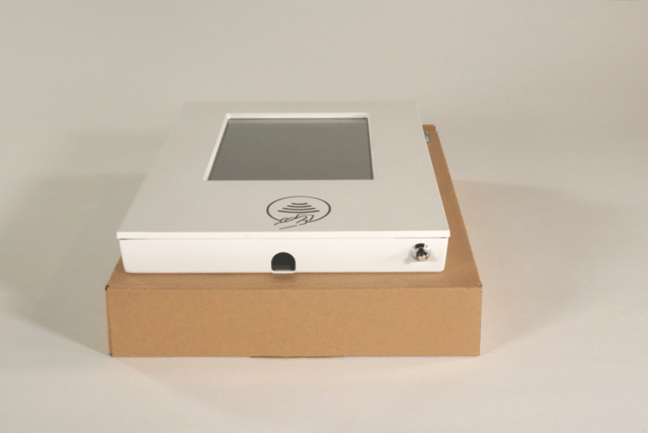

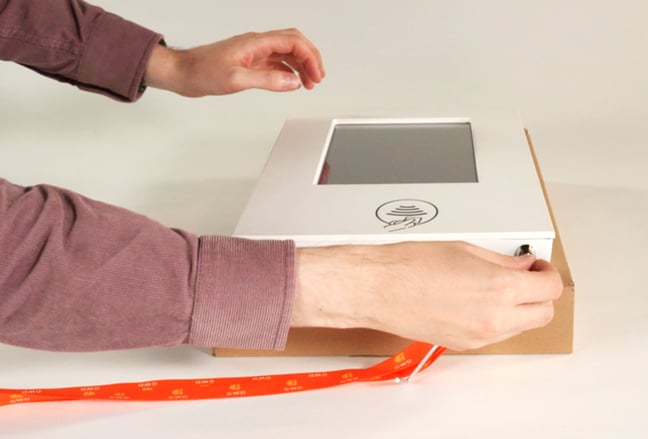

🔸a. To unbox, cut the tape closing the box, carefully remove surrounding packaging, then remove the Donation Station Skinny.
Inside you will receive:
🔸The Wall-mounted Slim Donation Station

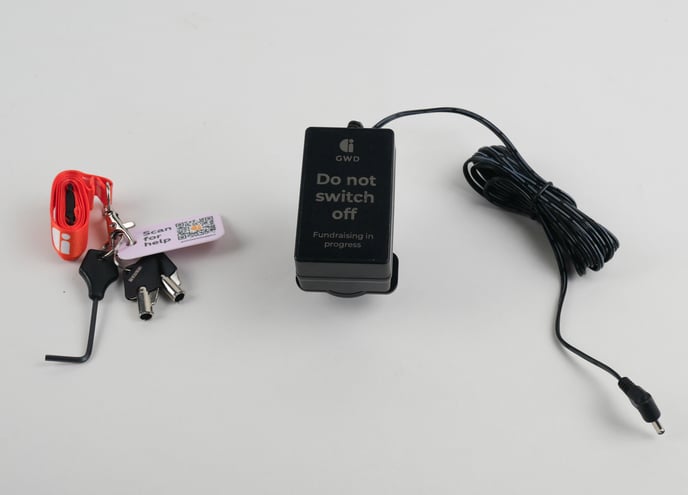

🔸A power cable and wall adapter
🔸A set of keys with lanyard, pokey tool and support QR code
ℹ️ If you ordered printed branding, this will be sent in a separate package.
🔶 2. Mounting the Donation Station Slim

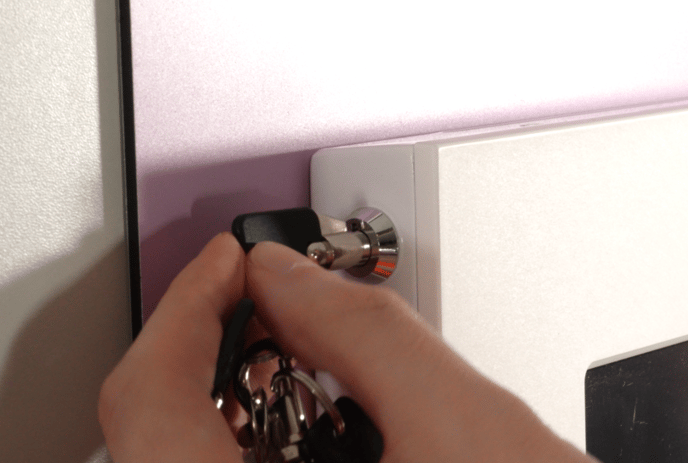

🔸a. Insert the key into the push locks and turn to unlock.

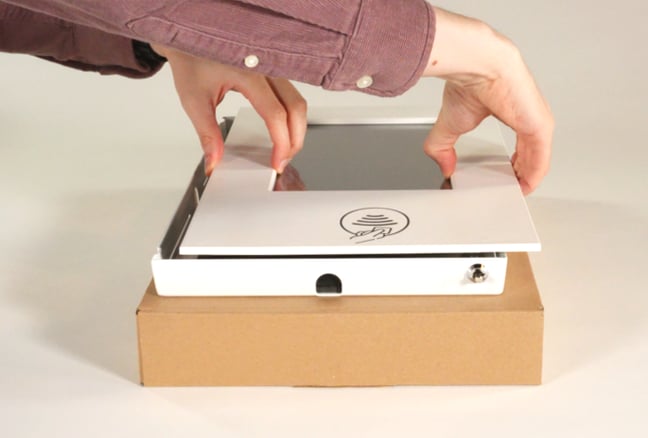

🔸b. Slide up this face plate, the tablet will be attached to it. Place it aside.

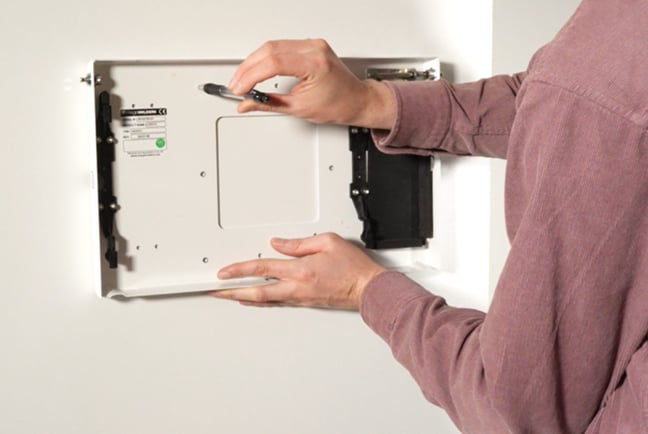

🔸c. Using the Slim back plate as a guide, mark on the wall where you will need to drill.

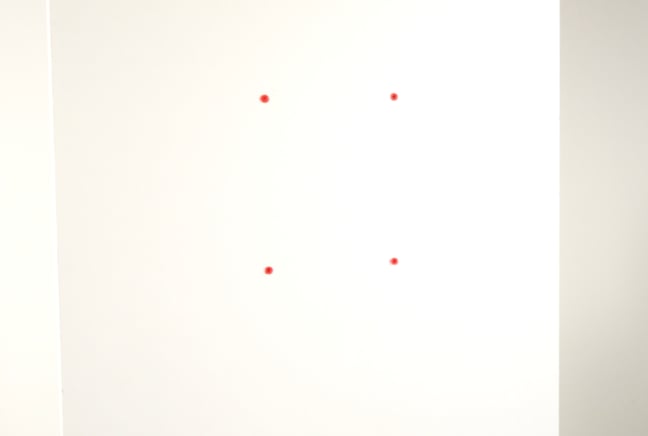

🔸d. Drill the holes, and insert wall plugs.
Tip: Choose a good height that all people can access - read these accessibility guidelines before drilling

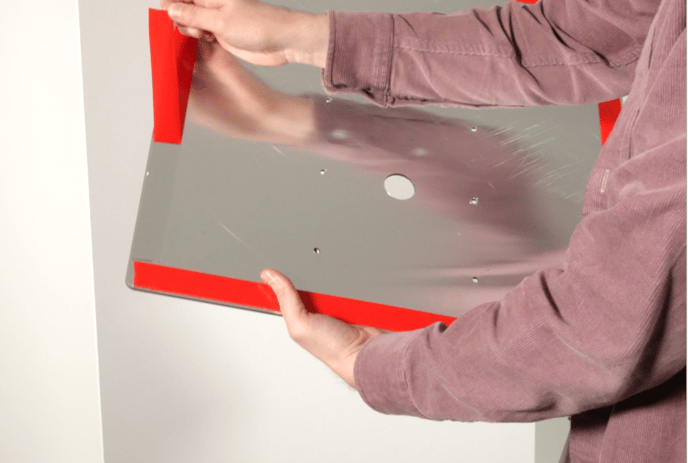

🔸e. If you have ordered a branding panel, remove the cover tape on the adhesive strips.
No panel specified? ⤵️ Skip to Step 3g.

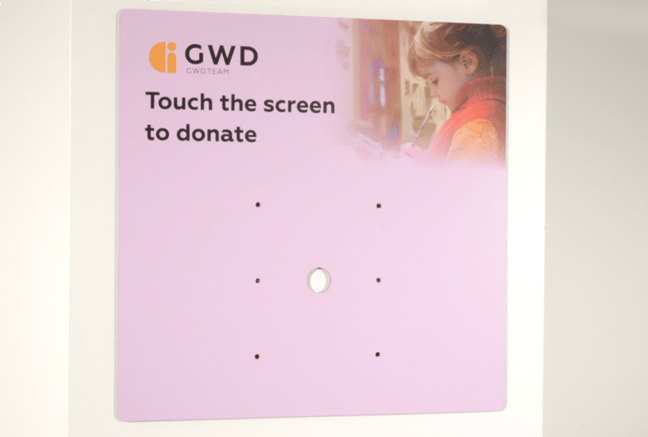

🔸f. Line up the holes on the branding panel with the wall plugs underneath, and stick the panel to the wall.

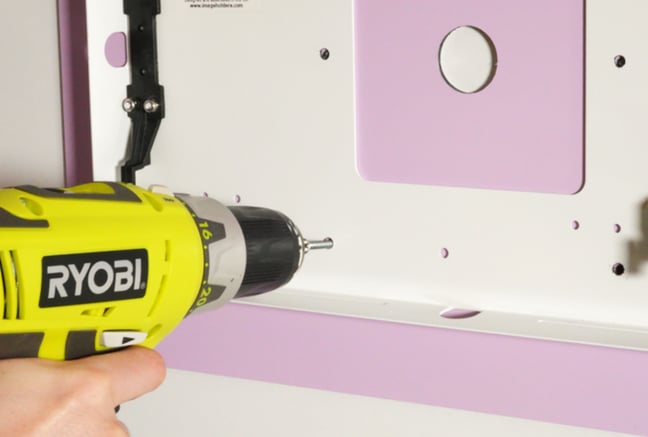

🔸g. Line up the holes of the Slim back panel with the wall plugs and screw into place.

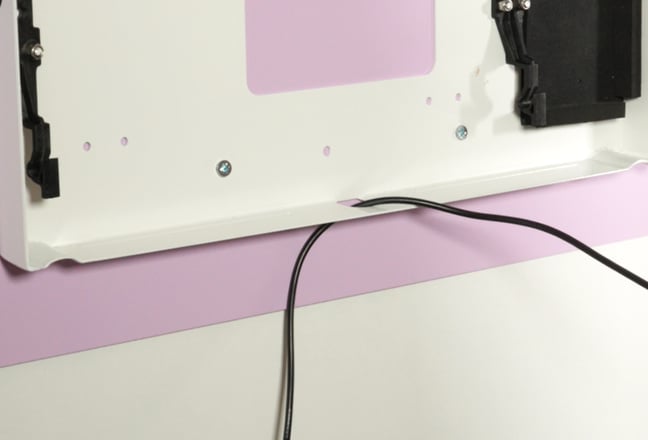

🔸h. Run the power cable through either the holes on the sides or the bottom of the Slim back plate.
At this point you should use the 'blanking plates' supplied with the device to cover up external openings not in use.
🔸i. Plug all the cables into the tablet.

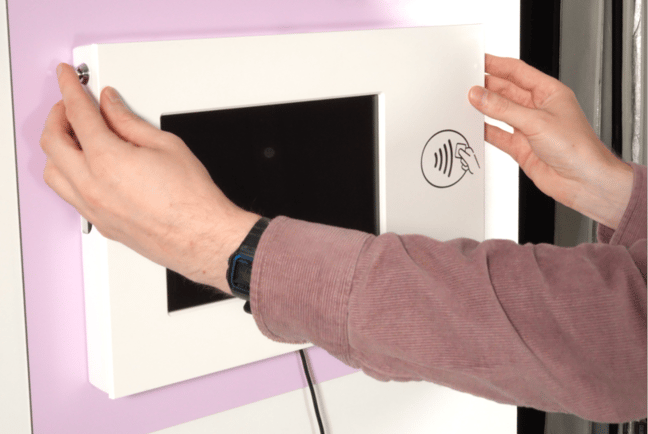

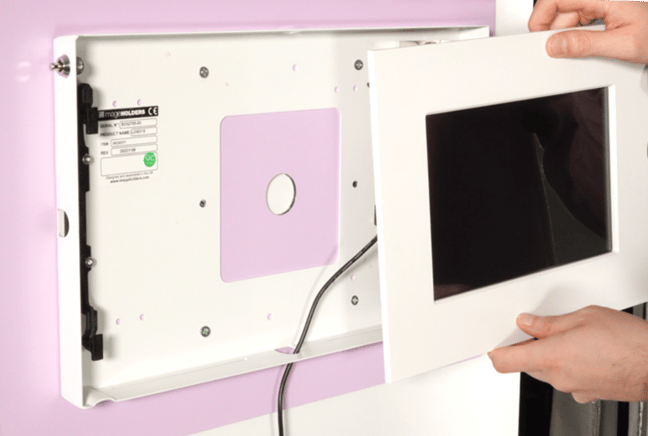

🔸j. Slide the face plate onto the back panel and push in the locks.
🔶 3. How to turn on your Slim
🔸a. Using the barrel key on your lanyard, unlock the Slim.

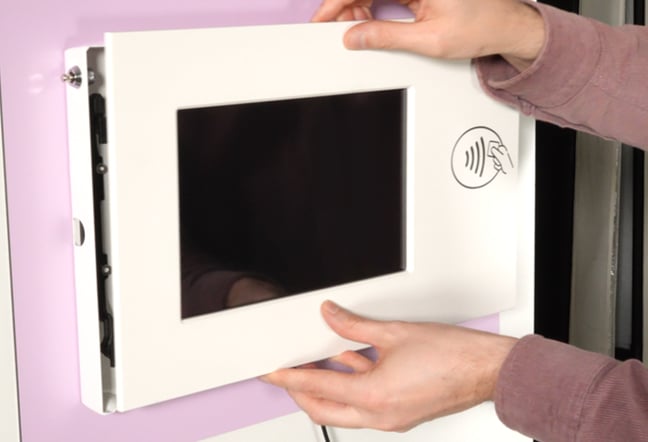

🔸b. Lift the face panel and tilt forward to reveal the button.

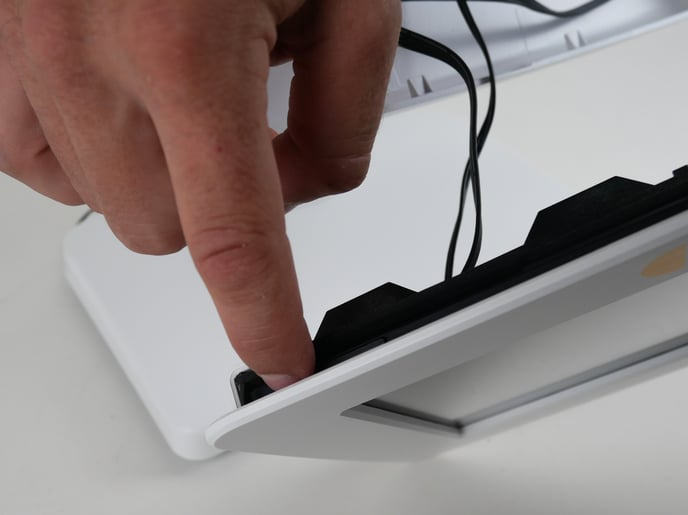

🔸c. Push the small button with your finger for 5-10 seconds.

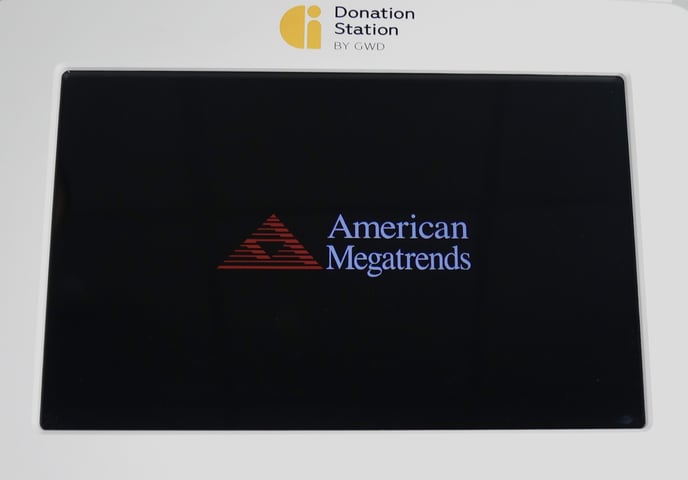

🔸d. American Megatrends or Linx logo will appear on screen.
